Technical specifications
|
MACHINE |
|
|---|---|
|
AUKŠTIS |
1765 mm |
|
PLOTIS |
850 mm |
|
ILGIS |
2100 mm |
|
SVORIS |
950 Kg |
|
BENDRAS PAVIRŠIAUS PLOTAS |
1.78 m2 |
|
NAŠUMAS SU 70 mm ŽARNOMIS |
7 kg/minute |
|
NAŠUMAS SU 50 mm ŽARNOMIS |
4 kg/minute |
|
BUNKERIO TALPA |
1000 litrų |
|
THREE LOBE POSITIVE DISPLACEMENT BLOWER |
|
|---|---|
|
Volume of air supplied 3000 rpm |
380 m2/hour 200 mbar (5.8 m2/min |
|
Volume of air supplied 3000 rpm |
330 m2/hour 300 mbar (5.5 m2/min) |
|
Absorbed power 3000 rpm |
3 kW 200 mbar |
|
Maximum differential pressure (blowing) |
1000 mbar |
|
Maximum differential pressure (suction) |
500 mbar |
|
PROGRESSIVE DISCHARGE AIRLOCK |
|
|---|---|
|
Diametras |
300 mm |
|
Ilgis |
370 mm |
|
Total chamber volume |
24 litrai |
|
Pumping chamber volume |
4 litrai |
|
Input connector diameter |
60 mm |
|
Output connector diameter |
100 mm |
Dokumentacija

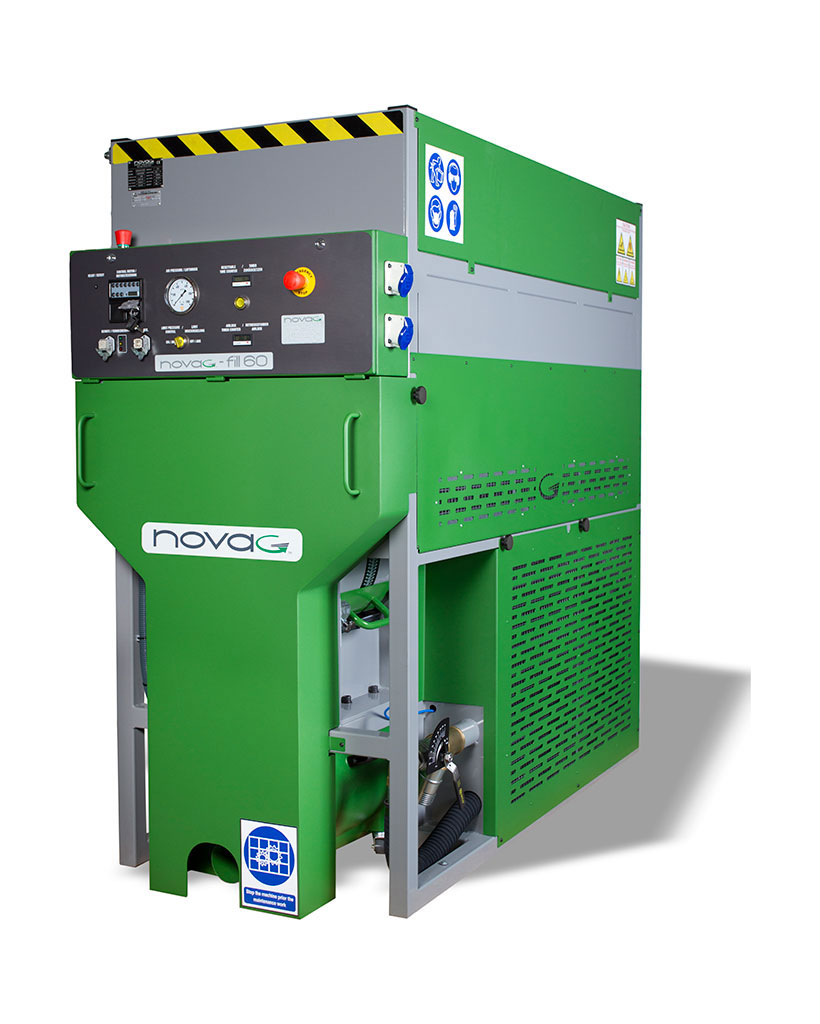

This machine allows you to inject mineral wool insulation for thermal, acoustic and fire protection applications.
