Techninės savybės

DIDŽIAUSIA IŠVESTIS

10 kg/min @ 110 bar (7.6 pumps)
5 kg/min @ 160 bar (4.5 pumps)

ELEKTRINIS SUJUNGIMAS

3PE 400V 50/60 Hz

ŠILDYMO GALIA

6 kW

ŠILDYMAS ŽARNA

3 kW

VARIKLIO GALIA

3 kW

SUVARTOJIMAS

23 A

DIDŽIAUSIAS ŽARNŲ ILGIS

93 m (for foam)
63 m (for polyurea)

SVORIS

190 Kg (be alyvos)

ALYVOS TALPA

18 l

IŠMATAVIMAI

H: 1165 mm W: 605 mm L: 744 mm

Dokumentacija

  • Naudojimo vadovas
  • Dalių vadovas

Savybės ir charakteristikos

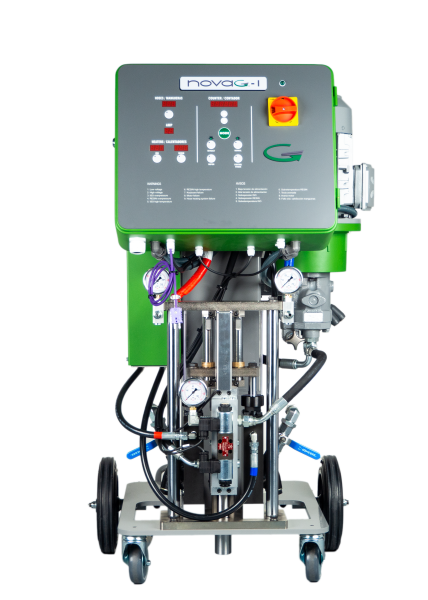

NOVAG I Three-Phases. Same versatility and easy to use like single-phase version but with the extra power of a three-phase motor to increase maximum output and pressure capabilities.

Pirminė šildymo sistema

The primary heating system consists of two separate independent tube heaters. Each heater incorporates two 900 W heating elements that supply a total power of 1800 W with the necessary control of safety features for the accurate and reliable system performance.

Šildomų žarnų sistema

The new Novag I can be equipped with 3 different hose options:

· 230V heated hose with a fix and only length of 20m.

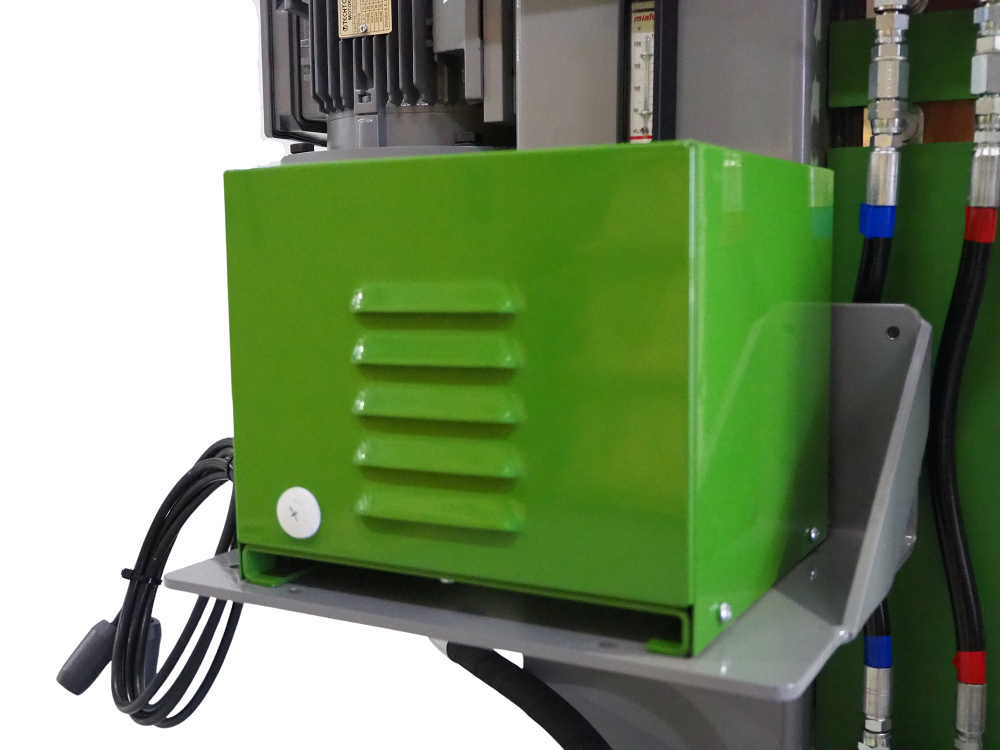

· Low voltage heated hose up to 48m. This option requires additional 2000W transformer.
· Non-heated recirculation hoses with a length of 11m.

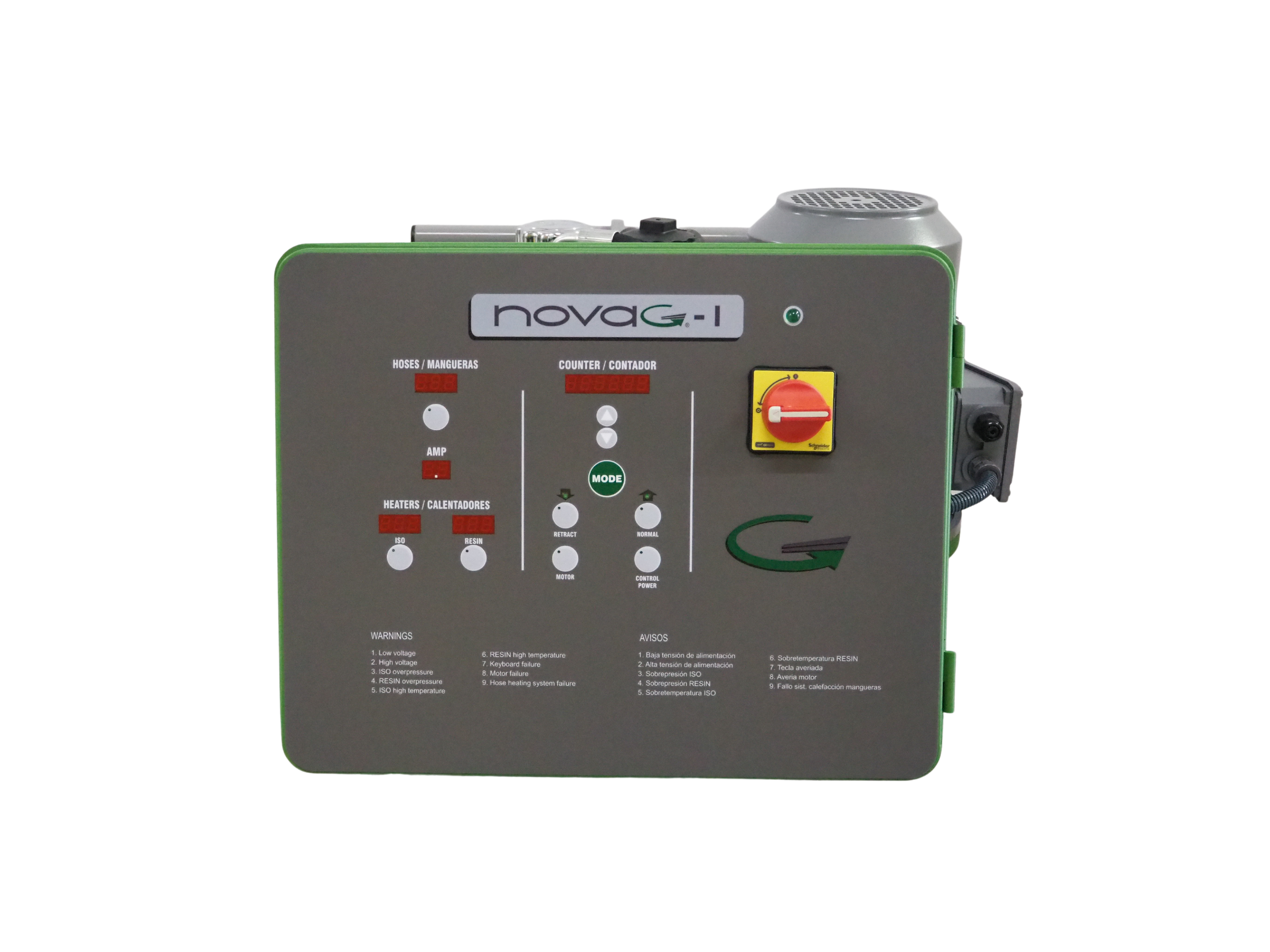

Valdymo skydelis

The control panel consists of a touch screen that incorporates specially designed software to facilitate the selection and control of all working parameters in quick and easy manner. A sophisticated alarm system warns the operation of any error in the process to ensure the right application of the products.
As an additional feature, a phase connection alarm is incorporated into the design to avoid costly repairs from errors or mistakes when plugging the machine into the electrical supply.
