Techninės savybės

DIDŽIAUSIA IŠVESTIS

4 Kg/min

DIDŽIAUSIAS SLĖGIS

175 bar

ELEKTRINIS SUJUNGIMAS

1NPE 230V 50 Hz
2PE 230V 50 Hz

ŠILDYMO GALIA

3,6 kW

ŠILDYMAS ŽARNA

1.6 kW (pasirinktinai)

VARIKLIO GALIA

1,8 kW

SUVARTOJIMAS

Recirculation hoses: 12A + 16A - 2 plugs
230 V heated hoses: 16A + 16A - 2 plugs
LV heated hoses: 12A + 16A + 9A - 3 plugs

DIDŽIAUSIAS ŽARNŲ ILGIS

Recirculation hoses: 11 m
230 V heated hoses: 20 m
LV heated hoses: 48 m

SVORIS

165 Kg (be alyvos)

DIDŽIAUSIA BAKO TALPA

30 l + 30 l

ALYVOS TALPA

18 l

IŠMATAVIMAI

H: 1228 mm W: 605 mm L: 819 mm

Dokumentacija

  • Naudojimo vadovas
  • Dalių vadovas

Savybės ir charakteristikos

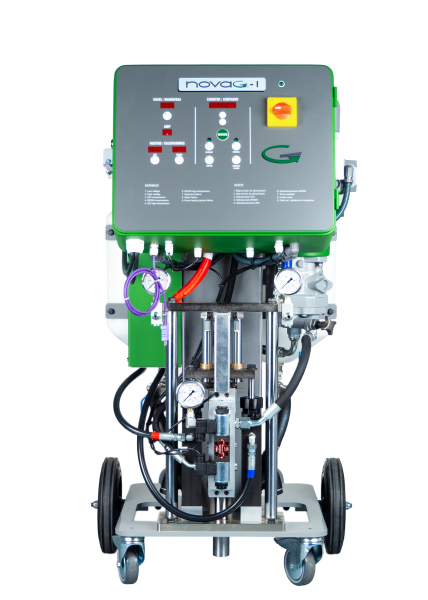

The new NOVAG I hydraulically driven proportioning unit has been designed and manufactured to fulfil the most demanding requirements of industrial foam in place applications of two component systems requiring high dosing precision to assure the best mixing quality of the chemical components. Its particular configuration facilitates easy access to all its components, simplifies the control functions and significantly reduces maintenance time.

Pirminė šildymo sistema

The primary heating system consists of two separate independent tube heaters. Each heater incorporates two 900 W heating elements that supply a total power of 1800 W with the necessary control of safety features for the accurate and reliable system performance.

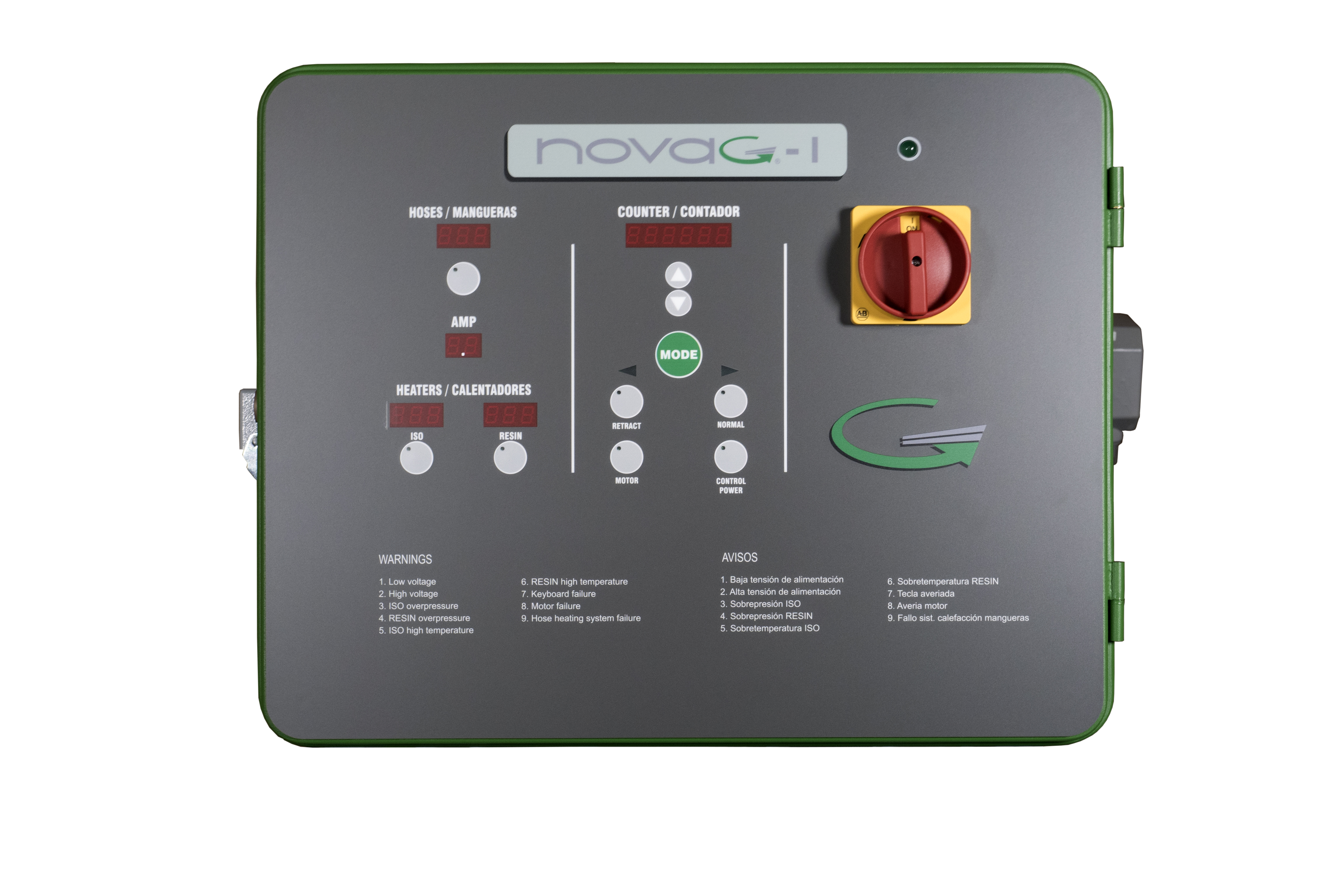

Valdymo skydelis

The control panel consists of a touch screen that incorporates specially designed software to facilitate the selection and control of all working parameters in quick and easy manner. A sophisticated alarm system warns the operation of any error in the process to ensure the right application of the products.
As an additional feature, a phase connection alarm is incorporated into the design to avoid costly repairs from errors or mistakes when plugging the machine into the electrical supply.
